NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module

Shenzhen Yongsheng Innovation Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

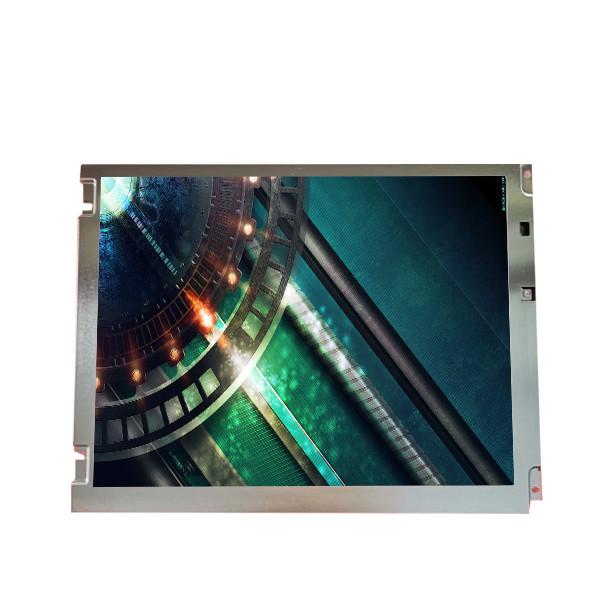

NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module

Brand Name : NEC

Model Number : NL6448BC33-64E

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model P/N : NL6448BC33-64E

Diagonal Size : 10.4"

Resolution : 640(RGB)×480, VGA 76PPI

Active Area : 211.2(W)×158.4(H) mm

Bezel Opening : 215.4(W)×161.8(H) mm

Outline Dim. : 243(W)×185.1(H)×11(D) mm

Lamp Type : 2 pcs CCFL , Without Driver

Response Time : 6/19 (Typ.)(Tr/Td)

Weight : 475/500g (Typ./Max.)

Application : Industrial

Contact Now

NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module

NL6448BC33-64E Product details :

NEC LCD Screen NL6448BC33-64E
Manufacturer NEC
Model Name NL6448BC33-64E
Screen Size 10.4 inches
Screen type LCM, a-Si TFT-LCD
Resolution 640(RGB)×480 [VGA] 76PPI
Pixel configuration RGB vertical bar
Display size 211.2 × 158.4 mm (H×V)
physical dimension 243 × 185.1 × 11 mm (H×V×D)
Visual size 215.4 × 161.8 mm (H×V)
Surface treatment Matte, Hard coating (3H)
Brightness (cd/m²) 450 (Typ.)
Contrast 600: 1 (Typ.) [Transmission]
Best angle 12 o'clock
Optical mode TN, normally white display, transmissive
Viewing angle 80/80/80/60 (Typ.)(CR≥10)
responding speed 6/19 (Typ.)(Tr/Td) ms
Number of colors 262K, 40% NTSC
Backlight type 2 pcs CCFL, without driver
Screen weight 475/500g (Typ./Max.)
Refresh rate 60Hz
Touch function No touch
signal system CMOS (1 ch, 6-bit), connector, 31 pins
Supply voltage 3.3/5.0V (Typ.)
Maximum rating Storage temperature: -20 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²)
NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module

NL6448BC33-64E Helpful Information:


To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.

NL6448BC33-64E Our advantages:


1: We are all own stock, with adequate supply


2: The quality of the product reached a series of certification


3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.

NL6448BC33-64E Shippment & Packing

NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module

NL6448BC33-64E About Shipping:

We will test them strictly before shipping.

we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.

It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.

I firmly believe


We will be your best partner

NL6448BC33-64E FAQ:

Q: Can I pay my order of NL6448BC33-64E via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of NL6448BC33-64E to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of NL6448BC33-64E ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long is the warranty ?

A: We offer 90days warranty .


China NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module wholesale

NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module Images
