Brand Name : Innolux
Model Number : N160JME-GEK
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : N160JME-GEK
Diagonal Size : 16.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1920(RGB)×1200, WUXGA 141PPI
Pixel Format : RGB Vertical Stripe
Active Area : 344.68(W)×215.42(H) mm
Touch Panel : Without
Designed For : Laptop
N160JME-GEK 16.0 inch 1920*1200 300 cd/m2 LCD Panel Module
N160JME-GEK LCD Panel Product details :
Brand | Innolux |
Model P/N | N160JME-GEK |
Diagonal Size | 16.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1200, WUXGA 141PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 344.68(W)×215.42(H) mm |
Bezel Opening | - |
Outline Size | 349.68(W)×224.42(H)×5.2(D) mm |
Surface | Antiglare, Hard coating (3H) |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 1200:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 11/9 (Typ.)(Tr/Td) |
Display Colors | 16.7M 45%NTSC |
Lamp Type | 12S6PWLED, 15K hours, With LED Driver |
Frequency | 165Hz |
Touch Screen | Without |
Shape Style | Slim (PCBA Bent, T≤3.0mm) |
Application | Laptop |
Signal Interface | eDP (4 Lanes), eDP1.4 , HBR2 (5.4G/lane) , 40 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
N160JME-GEK 16.0 inch 1920*1200 300 cd/m2 LCD Panel Module |
N160JME-GEK LCD Panel Shipping and Package :
N160JME-GEK LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd N160JME-GEK ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order N160JME-GEK ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
![]() |

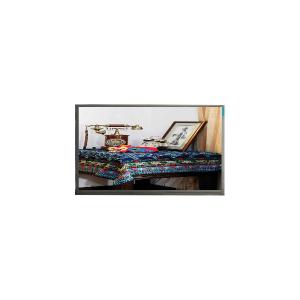

N160JME-GEK 16.0 inch 1920*1200 300 cd/m2 LCD Panel Module Images |
